Item specifics
  • Demo Board Type: Others
  • Brand Name: Waveshare
  • Model Number: STM32VLDISCOVERY
  • Category: Discovery kit
  • For use with: Value line STM32F100
  • Features 1: Onboard microcontroller STM32F100RBT6B (STM32, LQFP64)
  • Features 2: Incircuit ST-Link debugger / programmer (with SWD connector)
  • Place of Origin: Guangdong, China (Mainland)
Product Description
STM32VLDISCOVERY, Discovery kit for the Value line STM32F100

Description

The STM32VLDISCOVERY is a low-cost and quick way to discover the STM32 value line. It includes everything required for beginners and experienced users to get started quickly.

The STM32 value line Discovery includes an STM32F100 value line microcontroller in a 64-pin LQFP and an incircuit ST-Link debugger / programmer to debug Discovery applications and other target board applications.

A large number of free ready-to-run application firmware examples are available on www.st.com/stm32-discovery to support quick evaluation and development using the LEDs, button and extension header for connection to other boards or devices.

Key Features

  • STM32F100RB microcontroller, 128 KB Flash, 8 KB RAM in 64-pin LQFP
  • On-board ST-Link with selection mode switch to use the kit as a stand-alone ST-Link (with SWD connector)
  • Designed to be powered by USB or an external supply of 5 V or 3.3 V
  • Can supply target application with 5 V and 3 V
  • Two user LEDs (green and blue)
  • One user push button
  • Extension header for all QFP64 I/Os for quick connection to prototyping board or easy probing

Photos

STM32VLDISCOVERY evaluation development board
STM32VLDISCOVERY Packaging Back View
STM32VLDISCOVERY evaluation development board

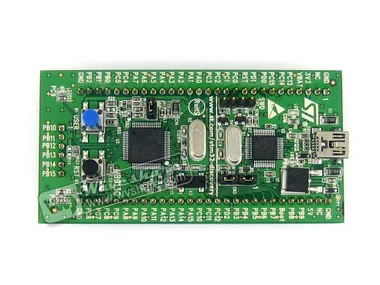

STM32VLDISCOVERY Development Board
STM32VLDISCOVERY evaluation development board

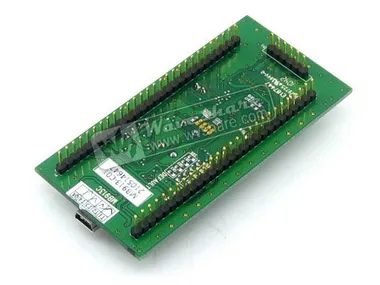

STM32VLDISCOVERY Development Board Back View
STM32VLDISCOVERY evaluation development board
STM32VLDISCOVERY Development Board

What\'s Onboard

STM32VLDISCOVERY what\'s onboard

Dimensions

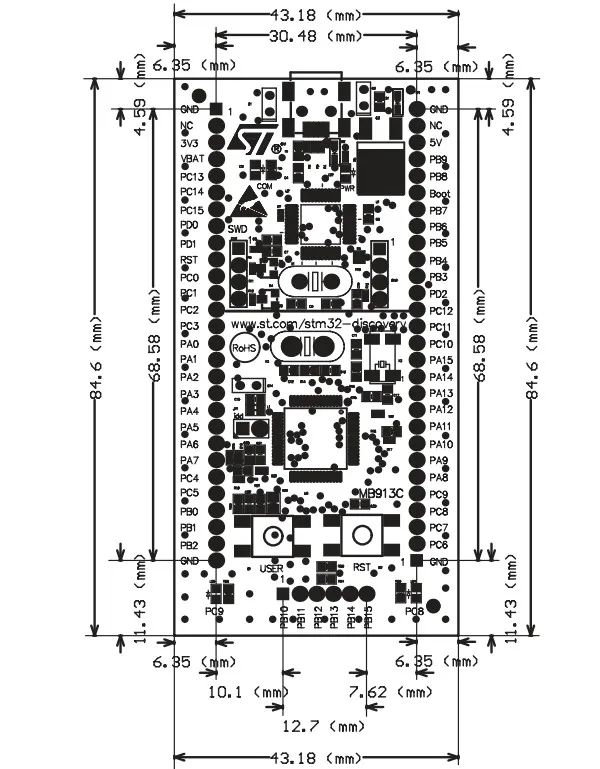

STM32VLDISCOVERY board dimensions

Design Support

For Technical Documentation, Software & Development Tools, Hardware Resources, view the STM32VLDISCOVERY official page on www.st.com to get more information

Package Contains

  1. STM32VLDISCOVERY × 1
