  • Brand Name: Waveshare
  • Demo Board Type: Others
  • Model Number: CoreEP3C5
  • Category: FPGA Core Board
  • For use with: CoreEP3C5 Development & Evaluation
  • Onboard MCU: EP3C5E144C8N
  • Feature 1: 1 x EP3C5E144C8N, nCONFIG button, RESET button, 4 x LEDs
  • Debugging/Programming: supports JTAG
  • PLLs: 2
  • RAM: 414kb
  • LEs: 5K
  • I/Os: 82
  • Operating Voltage: 1.15V~3.465V
Product Description

Altera Cyclone Board EP3C5 Chip EP3C5E144C8N ALTERA Cyclone III FPGA Evaluation Development Core Board with Full IOs =CoreEP3C5

FPGA core board, features the ALTERA Cyclone III chip EP3C5E144C8N onboard

Overview

CoreEP3C5 is an FPGA core board that features an EP3C5E144C8N device onboard, supports further expansion.

  • onboard Serial Configuration Device EPCS16SI8N
  • integrated FPGA basic circuit, such as clock circuit
  • onboard nCONFIG button, RESET button, 4 x LEDs
  • all the I/O ports are accessible on the pin headers
  • onboard JTAG debugging/programming interface
  • 2.54mm header pitch design

What\\\'s On Board

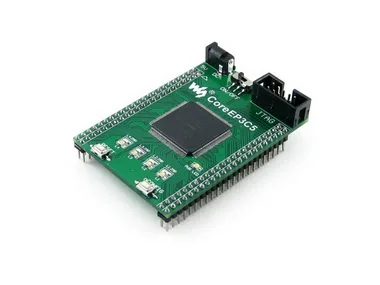

EP3C5E144C8N core board on board resource

  1. EP3C5E144C8N: the ALTERA Cyclone III FPGA device which features:
    • Operating Frequency: 50MHz
    • Operating Voltage: 1.15V-3.465V
    • Package: QFP144
    • I/Os: 82
    • LEs: 5K
    • RAM: 414kb
    • PLLs: 2
    • Debugging/Programming: supports JTAG
  2. AMS1117-3.3, 3.3V voltage regulator
  3. AMS1117-2.5, 2.5V voltage regulator
  4. AMS1117-1.2, 1.2V voltage regulator
  5. EPCS16, onboard serial FLASH memory, for storing code
  6. Power indicator
  7. LEDs
  8. Reset button
  9. nCONFIG button: for re-configuring the FPGA chip, the equivalent of power reseting
  10. Power switch
  11. 50M active crystal oscillator
  12. 5V DC jack
  13. JTAG interface: for debugging/programming
  14. FPGA pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion
  15. LED jumpers, short the jumpers to drive the LEDs

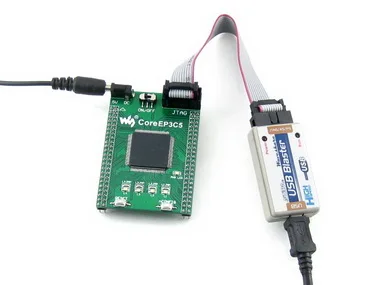

Photos


Note:
CoreEP3C5 provides JTAG debugging interface, yet does NOT integrate any debugging function, a debugger is required.
Mother board and programmer/debugger in the photos are NOT included in the price.
