Item specifics
  • Brand Name: Waveshare
  • Demo Board Type: Others
  • Model Number: Core3S500E
  • Onboard: XCF04S
  • Debugging/Programming: supports JTAG
  • Operating Frequency: 50MHz
  • Operating Voltage: 1.15V~3.3V
  • Package: QFP208
  • I/Os: 116
  • LEs: 500K
  • RAM: 360kb
  • DCMs: 4
  • Crystal oscillator: 50M active crystal oscillator
Product Description

XILINX FPGA Development Core Board Xilinx Spartan-3E XC3S500E Evaluation Kit+ XCF04S FLASH support JTAG= Core3S500E

FPGA core board, features the XILINX Spartan-3E chip XC3S500E onboard

Overview

Core3S500E is an FPGA core board that features an XC3S500E device onboard, supports further expansion.

  • onboard 1pcs XCF04S
  • integrated FPGA basic circuit, such as clock circuit
  • onboard nCONFIG button, RESET button, 4 x LEDs
  • all the I/O ports are accessible on the pin headers
  • onboard JTAG debugging/programming interface
  • 2.0mm header pitch design, suitable for being plugged-in your application system

What\\\'s On Board

XC3S500E core board on board resource

  1. XC3S500E: the XILINX Spartan-3E FPGA device which features:
    • Operating Frequency: 50MHz
    • Operating Voltage: 1.15V~3.3V
    • Package: QFP208
    • I/Os: 116
    • LEs: 500K
    • RAM: 360kb
    • DCMs: 4
    • Debugging/Programming: supports JTAG
  2. AMS1117-3.3, 3.3V voltage regulator
  3. AMS1117-2.5, 2.5V voltage regulator
  4. AMS1117-1.2, 1.2V voltage regulator
  5. XCF04S, onboard serial FLASH memory, for storing code
  6. Power indicator
  7. LEDs
  8. FPGA initialization indicator
  9. Reset button
  10. nCONFIG button: for re-configuring the FPGA chip, the equivalent of power reseting
  11. 50M active crystal oscillator
  12. JTAG interface: for debugging/programming
  13. FPGA pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion

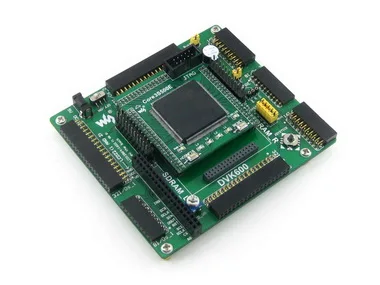

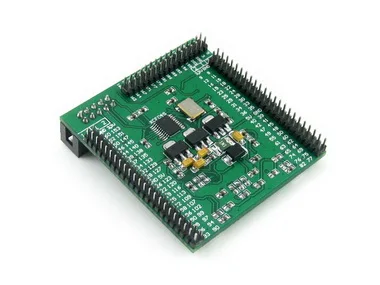

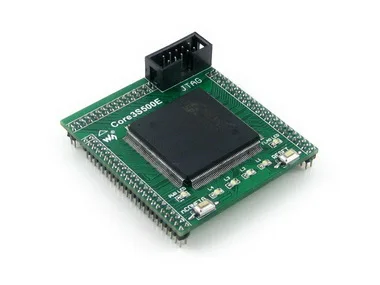

Photos


Note:
Core3S500E provides JTAG debugging interface, yet does NOT integrate any debugging function, a debugger is required.
Mother board and programmer/debugger in the photos are NOT included in the price.


Debugging/Programming Interface

The Core3S500E FPGA core board integrates JTAG interface for programming/debugging.

JTAG header pinout


Development Resources

Core3S500E FPGA core board comes with a User Guide CD including development resources listed as below:

  • Related software (Xilinx ISE 12 - supports Winxp/Win7, doesn\\\'t support Win8)
  • Demo code (Verilog, VHDL)
  • Schematic (PDF)
  • FPGA development documentations

Package Contains

  1. Core3S500E core board x 1
  2. User guide CD x 1
