Item specifics
  • Demo Board Type: ARM
  • Brand Name: FriendlyARM
  • Model Number: TINY6410ADK+4.3''LCD
  • RAM / FLASH :: 256M RAM , 256M SLC NAND FLASH
  • CPU:: Samsung S3C6410
  • Touch Screen:: 4.3 inch touch LCD
  • Support System:: Android ,WinCE , Linux+Qtopia
  • Version: TINY6410 ADK1312 , Enhanced version
  • Place of Origin: Guangdong, China (Mainland)
  • special interface: miniPCIe, SIM slot , AV-in, RS485
Product Description



ARM11 Board S3C6410 TINY6410 V2 + 4.3\'\' TFT Touch Screen

ADK1312 , Enhanced version

256M RAM + 256M SLC NAND FLASH

aeProduct.getSubject()

---------------------------------------------------------------------------------------------------------------------------------------

-Main Features-

  •  ARM11 Samsung S3C6410, ARM1176JZF-S, up to 533MHz
  • 256MB DDR RAM and 256M NAND FLASH
  • LCD/Touch Screen, CVBS/TV, Audio support
  • SD card, USB Host/OTG support
  •  Ethernet, serial port, GPIO
  • GPRS/WIFI/GPS/Camera/3G module/USB Bluetooth support (option)
  • Linux 2.6.28, WinCE6.0, Ubuntu support
  • Support Android 2.3
  • Source code provide



-Specification-

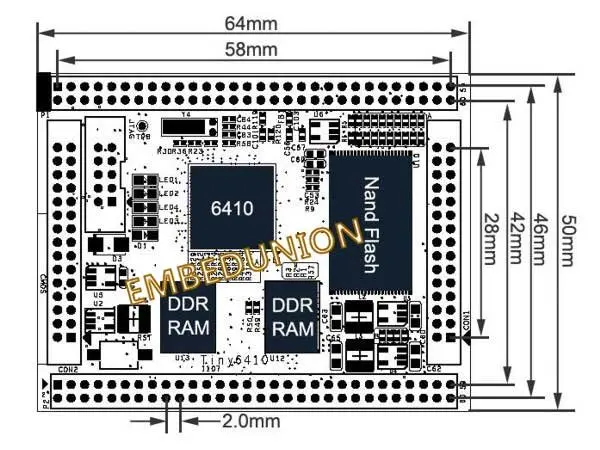

Tiny6410 Stamp Module:

  • Dimension: 64 x 50 mm
  • CPU: 533 MHz Samsung S3C6410A ARM1176JZF-S with VFP-Unit and Jazelle (max freq. 667 MHz)
  • RAM: 256 MB DDR RAM, 32 bit Bus
  • Flash: 256 MB NAND Flash
  • Serial, SPI, USB, LCD, CMOS Camera Interface
  • Analog Input and Output
  • User Outputs: 4x LEDs
  • Expansion headers (2.0 mm)
  • Debug: 10 pin JTAG (2.0 mm)
  • OS Support
    • Windows CE 6
    • Linux 2.6
    • Android
    • Ubuntu

TINY6410 SDK1309-base board:



  • aeProduct.getSubject()
-Hardware-

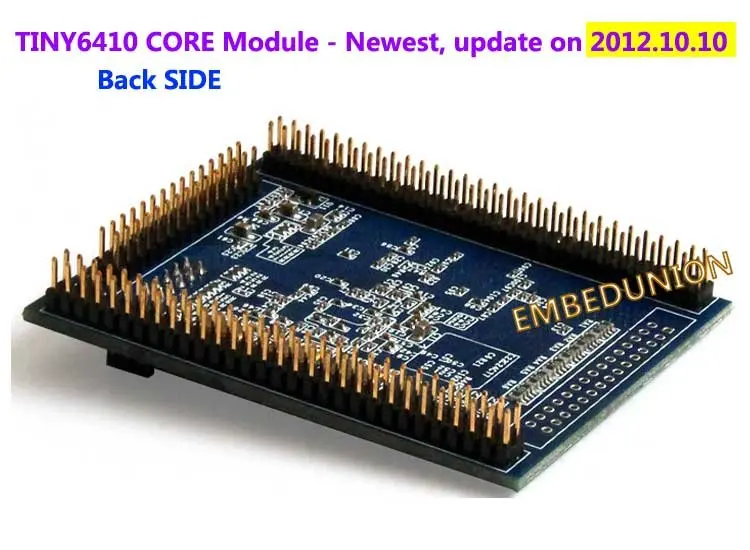

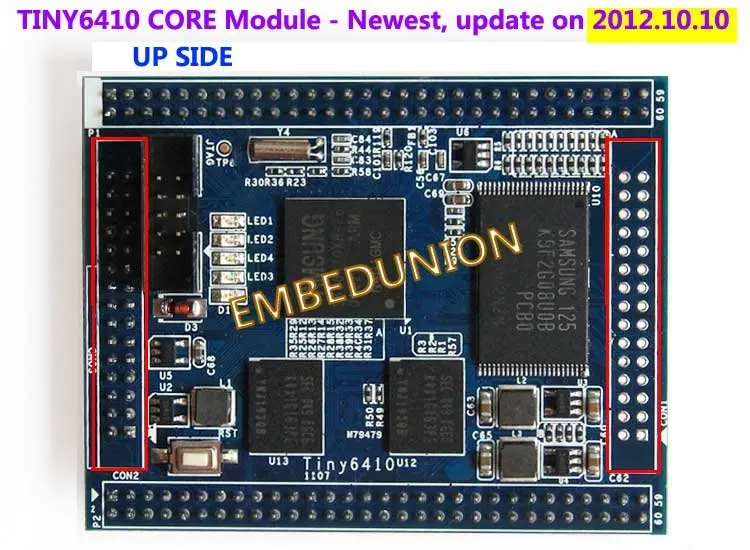

Tiny6410 Stamp Module:

the newest version (from 2012.10.10)- there just a little change for the CON1, CON2 , others no change.
aeProduct.getSubject()aeProduct.getSubject()
aeProduct.getSubject()

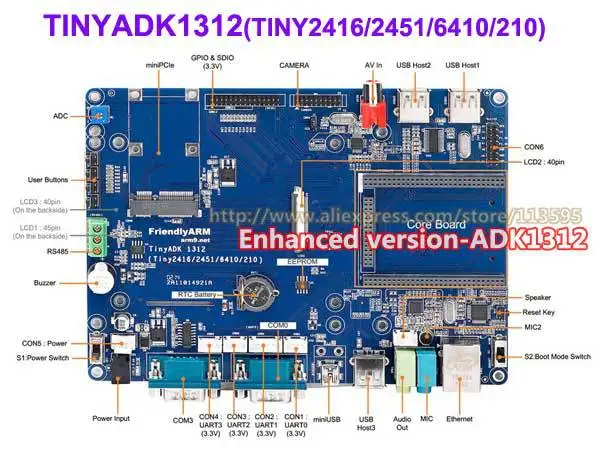

TINY6410 SDK 1309 V2  -base board-Standard Version:
 aeProduct.getSubject()

aeProduct.getSubject()





-LCD-

4.3 inch touch screen-H43 (Resistance)

  • Model name: HSD043I9W1
  • Touch: Resistance
  • Display resolution: 480*272(16:9 diagonal)
  • Size: 110mm*88mm
  • Display mode: Normally white
  • Pixel arrangement: RGB vertical stripe
  • Backlight: LED Side-light type
  • Power: 5V/1A
  • Surface treatment: Anti-Glare
  • Color: 8-bit color depth with 256 gray-scale , parallel 24-bit RGB data input
  • Other: with White Frame

aeProduct.getSubject()

-Package list-

  •          Tiny6410 board ( Preload with Linux)         x 1
  •          TFT LCD: 4.3"  480x272                                 x 1
  •          DB9 Serial Converter                                      x 1
  •          USB cable                                                    x 1
  •          Net cable                                                       x 1
  •          5V power adapter                                        x 1
  •          DVD-ROM with product reference                x 1
  •        Touch Pen for touch panel                              x 1

Remark: Preload with LINUX,  if want to change/reburn Board System, SD card (not less then 4GB) is necessary



Profoma invoice is very important and necessary, and please let us know the declared content and value that will be written in Proforma invoice after payment but before shipment.



- You may also interesting in -









- Attention-

Profoma invoice is very important and necessary, and please let us know the declared content and value that will be written in Proforma invoice after payment but before shipment.

We do not responssible for any customs tax or any other extra fee happend on your country\'s customs.

aeProduct.getSubject()

aeProduct.getSubject()



Packaging Details
  • Unit Type: piece
  • Package Weight: 1.5kg (3.31lb.)
  • Package Size: 22cm x 20cm x 16cm (8.66in x 7.87in x 6.30in)
