Item specifics
  • Brand Name: DFRobot
  • Demo Board Type: Raspberry pi 2 b
  • Application: for arduino Wireless communication
  • Supply Voltage: 3.3V @ 215mA
Product Description
Sparkfun XBee Pro 60mW Wire Antenna - Series 1 /S1 RF Wireless module, 802.15.4, 2.4GHz 250kbps 3.3V/215mA 1 mile range Compatible with XBee Zigbee
Introduction
  • This is the very popular 2.4GHz XBee XBP24-AWI-001 module from Digi (formerly known as Maxstream). The Pro series have the same pinout and command set of the basic series with an increase output power of 60mW! These modules take the 802.15.4 stack (the basis for Zigbee) and wrap it into a simple to use serial command set. These modules allow a very reliable and simple communication between microcontrollers, computers, systems, really anything with a serial port! Point to point and multi-point networks are supported.

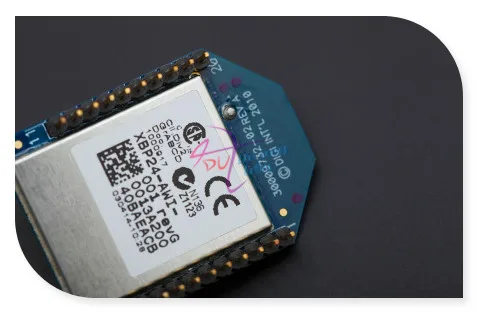

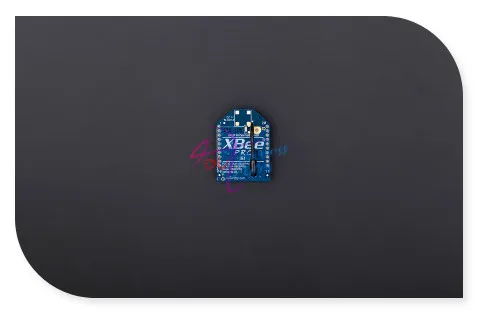

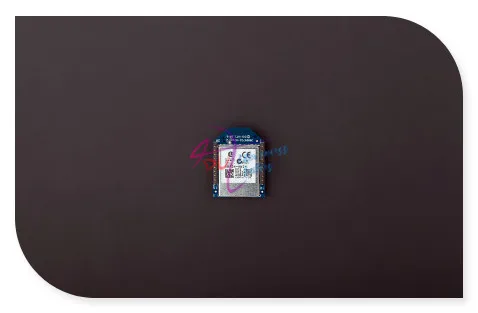

Photos
sui_000sui_002sui_004sui_005
Specification
  • 3.3V/215mA
  • 250kbps Max data rate
  • 60mW output (+18dBm)
  • 1 mile (1500m) range
  • Built-in antenna
  • Fully FCC certified
  • 6 10-bit ADC input pins
  • 8 digital IO pins
  • 128-bit encryption
  • Local or over-air configuration
  • AT or API command set
Shipping List
  • XBee Pro 60mW Wire Antenna x1

Packaging Details
  • Unit Type: piece
  • Package Weight: 0.15kg (0.33lb.)
  • Package Size: 7cm x 5cm x 5cm (2.76in x 1.97in x 1.97in)
