Item specifics
  • Model Number: BB Black
  • Brand Name: Waveshare
  • Demo Board Type: Others
  • Processor: TI Sitara AM335x, 1GHz, 2000 MIPS
  • SDRAM: 512MB DDR3L 800MHZ
  • Onboard Flash: 4GB, 8bit Embedded MMC (eMMC)
  • Power Source: 5VDC External Via Expansion Header
  • Operating Power: 5V,0.35A
  • Board Size: 3.4' x 2.1'
  • Debug Support: Optional Onboard 20-pin CTI JTAG, Serial Header
  • Version: Rev C
  • Video/Audio Interfaces: HDMI D type interface;LCD interface;Stereo audio over HDMI interface
  • User Input / Output: Reset B;Boot B;Power B;LED power indicator;4 user configurable LEDs
Product Description

BeagleBone Black TI AM335x Cortex-A8 development Board Kit Rev.C from Embest Element14 BB-Black Rev.C 1GHz ARM Free shipping

BB Black/BeagleBone Black, from BeagleBoard family


BB-Black

Overview

BeagleBone Black is an MSRP community-supported development platform for developers and hobbyists. Boot Linux in under 10 seconds and get started on development in less than 5 minutes with just a single USB cable.


Features

BB-Black on board resource

  • Processor: TI Sitara AM335x, 1GHz, 2000 MIPS
    • 1 GHz ARM Cortex-A8
    • SGX530 Graphics Engine
    • Programmable Real-Time Unit Subsystem
  • Memory
    • SDRAM: 512MB DDR3L 800MHZ
    • eMMC Flash:
      • Rev B: 2GB (discontinued)
      • Rev C: 4GB (as of 2014.05.21)
  • SD/MMC Connector for microSD
  • Power management: TPS65217C PMIC is used along with a separate LDO to provide power to the system
  • Debug Support: Optional Onboard 20-pin CTI JTAG, Serial Header
  • Power Source
    • miniUSB USB or DC Jack
    • 5VDC External Via Expansion Header
  • Connectivity
    • High speed USB 2.0 Client port: Access to USB0, Client mode via miniUSB
    • High Speed USB 2.0 Host port: Access to USB1, Type A Socket, 500mA LS/FS/HS
    • Serial Port: UART0 access via 6 pin 3.3V TTL Header. Header is populated
    • 10/100M Ethernet (RJ45)
  • User Input / Output
    • Reset Button
    • Boot Button
    • Power Button
    • LED power indicator
    • 4 user configurable LEDs
  • Video/Audio Interfaces
    • HDMI D type interface
    • LCD interface
    • Stereo audio over HDMI interface
  • Expansion Interfaces
    • LCD, UART, eMMC
    • ADC, I2C, SPI, PWM
  • Operating Power: 5V/0.35A
  • Board Size: 3.4 x 2.1

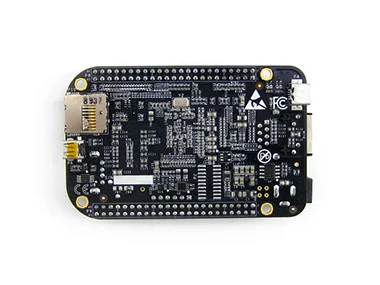

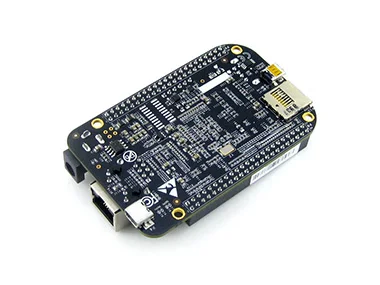

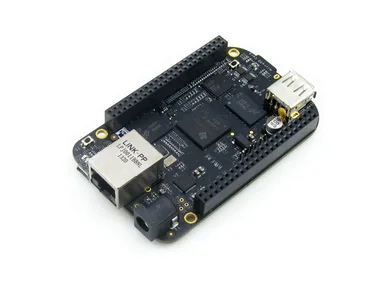

Photos


Block Diagram

BB-Black


Dimension

BB-Black


Package Contains

  1. BB Black x 1
  2. USB type A plug to mini-B plug cable x 1
1
2

Optional Items

  • The BB Black supports 7inch HD capacitive touch screen : 7inch HDMI LCD (B)
