  • Demo Board Type: ARM
  • Brand Name: Waveshare
  • Model Number: Open103Z Package A
  • Category: STM32 Development Board
  • For use with: STM32F103ZET6(TQFP144 package) Development & Study
  • Features: Top-rated performance line STM32 MCU STM32F103ZE
  • Supports: 3.2" 320x240 touch screen LCD
  • Communication interfaces: 1 x 8-Bit I/O, 1 x SDIO, 2 x SPI, 2 x I2C, 1 x ONE-WIRE,1xCAN,etc.
  • Programming interface: JTAG/SWD
  • Examples: Comes with examples in C, μC/OS-II
  • Core: ARM Cortex-M3 32-bit RISC
  • Operating Frequency: 72MHz, 1.25 DMIPS/MHz
  • Memories: 512K Flash, 64K RAM (the highest specification in STM32F103Z series)
Product Description

aeProduct.getSubject()

-Product Description-

STM32 development board designed for STM32F103Z series, features the STM32F103ZET6 MCU, and integrates various standard interfaces, pretty easy for peripheral expansions.

aeProduct.getSubject()

-Overview-

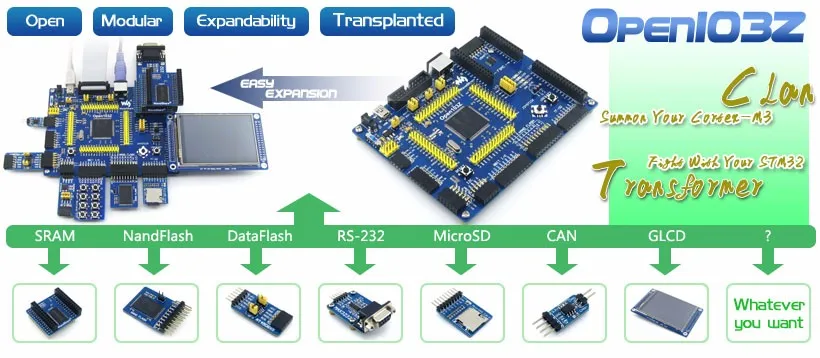

  Open103Z is a STM32 development board that features a STM32F103ZET6 device as the microcontroller. There are further expansions with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with STM32F family.

What\'s on Board

aeProduct.getSubject()
  1. STM32F103ZET6: the high performance STM32 MCU in LQFP144 package which features
    • Core: ARM Cortex-M3 32-bit RISC;
    • Operating Frequency: 72MHz, 1.25 DMIPS/MHz;
    • I/Os: 112;
    • Operating Voltage: 2-3.6V;
    • Memories: 512K Flash, 64K RAM (the highest specification in STM32F103Z series);
    • Communication Interfaces: 3xSPI, 5xUSART, 2xI2S, 2xI2C, 1xFSMC, 1xLCD, 1xSDIO, 1xUSB, 1xCAN;
    • AD & DA converters: 3 x AD(12bit, 1μs, shares 21 channels); 2 x DA(12bit);
    • Debugging/Programming: supports JTAG/SWD (serial wire debug) interfaces, supports IAP;
  2. 74LVC139: Used for FSMC expansion, makes it possible to connect multi peripherals through FSMC at the same time, such as connecting a LCD and a NAND FLASH;
  3. AMS1117-3.3: 3.3V voltage regulator;
  4. Power supply switch: 5V DC or USB;
  5. Power indicator;
  6. LEDs: Convenient for indicating I/O status or program debugging running state;
  7. Reset button;
  8. User key;
  9. Joystick: Convenient for I/O input (five positions);
  10. 32.768K crystal oscillator: used for internal RTC;
  11. 8M crystal oscillator: enables the MCU run at 72M frequency by frequency multiplication;
  12. SDIO Interface: connects to the Micro SD Board easily, It is much faster to read/write the Micro SD card via SDIO than via SPI;
  13. 8 I/O Interface: easily connects to keypad, motor, etc;
  14. CAN Interface: communicates with accessory board which features the CAN device conveniently;
  15. SPI Interface: easily connects to SPI peripherals such as FLASH (AT45DBxx), SD card, MP3, etc;
  16. I2C Interface: easily connects to I2C peripherals such as I/O expander(PCF8574), EEPROM (AT24Cxx), etc;
  17. NAND FLASH Interface: easily connects to the NAND FLASH peripherals;
  18. LCD Interface: easily connects to the touch screen LCD;
  19. ONE-WIRE Interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
  20. PS/2 Interface: easily connects to PS/2 keyboard or mouse;
  21. USART1 Interface: easily connects to RS232, RS485, USB TO 232;
  22. USART2 Interface: easily connects to RS232, RS485, USB TO 232;
  23. FSMC Interface: easily connects to FSMC interface, such as NorFlash (S29GL128P), SRAM (IS62WV51216BLL);
  24. USB Port: USB communication between board and PC;
  25. 5V DC jack;
  26. 5V/3.3 V power input/output;
  27. MCU pins connector: all the MCU pins are accessible on expansion connectors for further expansion;
  28. JTAG/SWD interface: for debugging/programming;
  29. Boot Mode Selection: for configuring the BOOT0 and BOOT1 pins;
  30. USB Enable Jumper
    • Short the jumper to enable the PC auto detection while USB connecting;
    • Open the jumper to disable;
  31. PS/2 Interface Jumper
    • Short the jumper to connect the PS/2 device to default I/Os;
    • Open the jumper to connect the PS/2 device to custom I/Os via DuPont wires;
  32. LEDs Jumper
    • Short the jumper to connect the LEDs to default I/Os;
    • Open the jumper to connect the LEDs to custom I/Os via DuPont wires;
  33. VBAT Selection Jumper
    • Short the jumper to use system power supply;
    • Open the jumper to connect the VBAT to external power, such as battery;

-Photos-



aeProduct.getSubject()

aeProduct.getSubject()



Note:
The Open103Z supports programming via STM32 USART bootloader, a USB TO UART accessory board is also provided in the package.
The Open103Z does NOT integrate any debugging function, a debugger is required.



JTAG/SWD Interfaces

 The figure 1, and 2 show the header pinouts of JTAG/SWD interface

Figure 1. JTAG Header Pinout

aeProduct.getSubject()

Figure 2. SWD Header Pinout

aeProduct.getSubject()

-Development Resources-

The User Guide CD includes development resources listed as follow:

  • Related softwares (KEIL etc.)

  • Demo Code (examples in C, μC/OS-II)

  • Schematic (PDF)

  • STM32 Development documents (Datasheet etc.)

-Package List-

 The "Standard Package" and "Accessory Boards Package" below are included.

aeProduct.getSubject()



We do not responssible for any customs tax or any other extra fee happend on your country\'s customs.

aeProduct.getSubject()

aeProduct.getSubject()



Packaging Details
  • Unit Type: piece
  • Package Weight: 0.55kg (1.21lb.)
  • Package Size: 20cm x 18cm x 10cm (7.87in x 7.09in x 3.94in)
