STM32 development board designed for STM32F429I, features the STM32F429IGT6 MCU, and integrates various standard interfaces, pretty easy for peripheral expansions.

Overview

Open429I-C is an STM32 development board designed for the STM32F429IGT6 microcontroller, consists of the mother board and the MCU core boardCore429I.

The Open429I-C supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with STM32 series microcontrollers.


What\\\'s on the mother board

  1. MCU core board connector: for easily connecting the Core429I
  2. USART3 interface: easily connects to RS232, RS485, USB TO 232, etc.
  3. DCMI interface: for connecting camera
  4. Capacitive touch panel interface: for connecting capacitive touch panel
  5. CAN2 interface: for connecting CAN modules
  6. CAN1 interface: for connecting CAN modules
  7. SDIO interface: for connecting Micro SD module, features much faster access speed rather than SPI
  8. ULPI interface: for connecting high-speed USB peripheral (the STM32F429I integrates USB HS controller without any PHY device)
  9. LCD interface 1: for connecting 7inch LCD
  10. ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
  11. LCD interface 2: for connecting 4.3inch LCD
  12. I2C2/I2C3 interface: easily connects to I2C peripherals such as I/O expander (PCF8574), EEPROM (AT24Cxx), etc.
  13. SAI1 interface: for connecting audio modules like UDA1380 module
  14. Ethernet interface: for connecting Ethernet modules
  15. USB connector: USB to UART via the onboard convertor PL2303
  16. SPI1/SPI2 interfaces:
    • easily connects to SPI peripherals such as DataFlash (AT45DBxx), SD card, MP3 module, etc.
    • easily connects to AD/DA modules (SPI1 features AD/DA alternative function)
  17. I2S2/I2S3/I2C1 interface: easily connects to I2S peripherals such as audio module, etc.
  18. 8-bit FMC interface: easily connects to peripherals such as NandFlash
  19. 5V DC jack
  20. 5V/3.3V power input/output: usually used as power output, also common-grounding with other user board
  21. MCU pins connector: all the MCU I/O ports are accessible on expansion connectors for further expansion
  22. PL2303: USB to UART convertor
  23. LEDs: convenient for indicating I/O status and/or program running state
  24. PL2303 TX-LED / RX-LED
  25. 12MHz crystal: for PL2303
  26. Joystick: five positions
  27. WAKE UP button: used as regular button, and/or wake up the STM32 MCU from sleep
  28. USB to UART jumper
  29. LED jumper
    • short the jumper to connect to default I/Os used in example code
    • open the jumper to connect to custom I/Os via jumper wires
  30. Button/Joystick jumper
    • short the jumper to connect to default I/Os used in example code
    • open the jumper to connect to custom I/Os via jumper wires

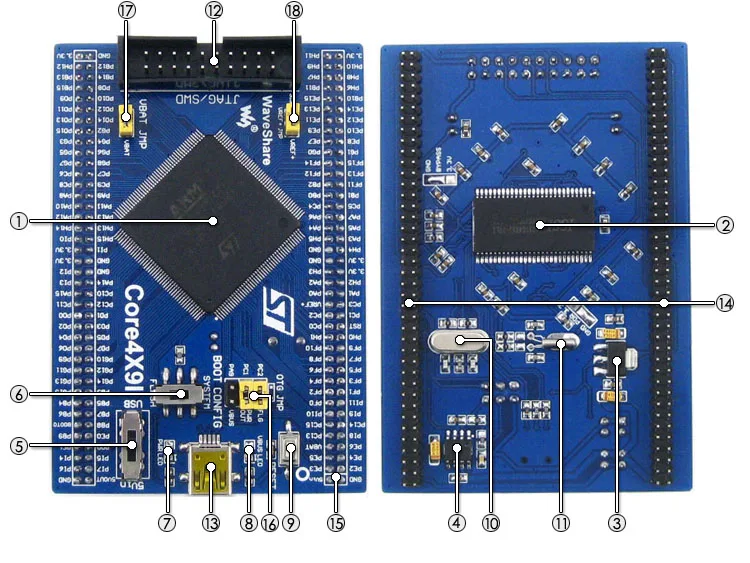

What\\\'s on the Core429I

  1. STM32F429IGT6: the high performance STM32 MCU which features:
    • Core: Cortex-M4 32-bit RISC
    • Feature: single-cycle DSP instructions
    • Operating Frequency: 180MHz, 225 DMIPS/1.25 DMIPS/MHz
    • Operating Voltage: 1.8V-3.6V
    • Package: LQFP176
    • Memories: 1024kB Flash, 256+4kB SRAM
    • MCU communication Interfaces:
      • 6 x SPI, 4 x USART, 4 x UART, 2 x I2S, 1 x SAI, 3 x I2C
      • 1 x FMC, 1 x SDIO, 2 x CAN
      • 1 x LCD-TFT
      • 1 x USB 2.0 HS/FS controller (with dedicated DMA)
      • 1 x USB HS ULPI (external PHY required)
      • 1 x 10/100 Ethernet MAC
      • 1 x 8 to 14-bit camera interface
    • AD & DA converters: 3 x AD (12-bit, 1s, shares 24 channels); 2 x DA (12-bit)
    • Debugging/Programming: supports JTAG/SWD interfaces, supports IAP
  2. IS42S16400J: SDRAM 1 Meg Bits x 16 Bits x 4 Banks (64-MBIT)
  3. AMS1117-3.3: 3.3V voltage regulator
  4. MIC2075: onboard USB power management device
  5. Power supply switch, powered from 5Vin or USB connection
  6. Boot mode selection, for configuring BOOT0 pin
  7. Power indicator
  8. VBUS LED
  9. Reset button
  10. 8M crystal
  11. 32.768K crystal, for internal RTC with calibration
  12. JTAG/SWD interface: for debugging/programming
  13. USB connector, supports Device and/or Host
  14. MCU pins expander, VCC, GND and all the I/O pins are accessible on expansion connectors for further expansion
  15. 5Vin pinheader, 5V power supply is required when using USB HOST/OTG
  16. USB OTG/HOST jumper
    • short the jumper when using USB OTG/HOST
    • open the jumper to disconnect from related I/O port
  17. VBAT selection jumper
    • short the jumper to use system power supply
    • open the jumper to connect the VBAT to external power, such as battery
  18. VREF selection jumper
    • short the jumper to connect VREF+ to VCC
    • open the jumper to connect VREF+ to other custom pin via jumper wire

Photos


Open429I-C development board

Open429I-C development board back view

Open429I-C development board

Open429I-C mother board

STM32 Cortex-M4 MCU board

STM32 Cortex-M4 MCU board

Connecting to various peripherals

Connecting to USB device via convertor cable

4.3inch lcd emWin demo1

4.3inch lcd emWin demo2

4.3inch lcd emWin demo3

4.3inch lcd emWin demo4

7inch lcd emWin demo1

7inch lcd emWin demo2

7inch lcd emWin demo3

7inch lcd emWin demo4

Connecting to USB3300 USB HS Board

Connecting to OV2640 Camera Board

Connecting to NandFlash Board

Connecting to RS232 Board

Connecting to RS485 Board

Connecting to CAN Board

Connecting to 8 Push Buttons

Connecting to 5 IO Keypad

Connecting to AD Keypad

Test Board on the AD/DA port

Connecting to FRAM Board

Multi I2C peripheral Module connected to the I2C bus

Connecting to Micro SD Storage Board

Connecting to DataFlash Board

Connecting to NRF24L01 RF Board

Connecting to Ethernet Board

Connecting to VS1003B MP3 Board

Connecting to UDA1380 Board

Connecting to VGA PS2 Board

Connecting to any accessory board you need

Note:
The Open429I-C supports programming via UART bootloader
The Open429I-C does NOT integrate any debugging function, a debugger is required.


JTAG/SWD interfaces

The figure 1, and 2 show the header pinouts of JTAG/SWD interface

Figure 1. JTAG Header Pinout
Figure 2. SWD Header Pinout

Development Resources

The User Guide CD includes development resources listed as follows:

  • Schematic
  • Demo code (examples in C, C/OS-II)
  • STM32 development software (KEIL etc.)
  • STM32 datasheets
  • STM32 development documentations

Note: the capacitive touch screen driver is not provided for the moment.


Package Contains

  1. Open429I-C development board x 1
  2. USB type A plug to mini-B plug cable x 1
  3. USB type A receptacle to mini-B plug cable x 1
  4. 4-pin 2-pin wires pack x 1
  5. USB power cable x 1
  6. User Guide CD x 1
