Report item
Item specifics
  • Demo Board Type: ARM
  • Brand Name: FriendlyARM
  • Model Number: Core board - micro2440 (256M FLASH)
  • RAM & FLASH:: 64M RAM ,256M NAND FLASH
  • CPU:: Samsung S3C2440
  • Board / Module:: ARM Core Module, Stamp Module , ARM9
  • Support System:: Linux+Qtopia-2.2.0,WinCE
  • Place of Origin: Guangdong, China (Mainland)
Product Description

ARM9 Development Board Samsung S3C2440 Micro2440 STAMP Module

64M RAM + 256M NAND FLASH

aeProduct.getSubject()

---------------------------------------------------------------------------------------------------------------------------------------

-Main Features-

  • Dimension: 63 x 52 mm
  • CPU: 400 MHz Samsung S3C2440A ARM920T (max freq. 533 MHz)
  • RAM: 64 MB SDRAM, 32 bit Bus
  • Flash: 256M NAND Flash and 2 MB NOR Flash with BIOS
  • Serial, SPI, USB, LCD, CMOS Camera Interface
  • Analog Input and Output
  • User Outputs: 4x LEDs
  • Expansion headers (2.0 mm)
  • Debug: 10 pin JTAG (2.0 mm)
  • OS Support
    • Windows CE 5 and 6
    • Linux 2.6

-Specification-

Miro2440 Stamp Module:

Feature:

  • Samsung S3C2440A 400MHz, Max freq. 533Mhz
  • 64MB SDRAM
  • 32Bits Data Bus width
  • 100MHz Clock
  • 256MB Nand Flash
  • 2MB Nor flash
  • On board 5V Power Supply
  • Oscillator Freq. - 12 MHz

source onbaord:

  • Expand Interface-- 162-Pin 2.0mm connectors

PCB

  • 6 layers PCB layout

System support:

  •  Linux 2.6.13
  • Windows CE.Net 5.0

-Hardware-

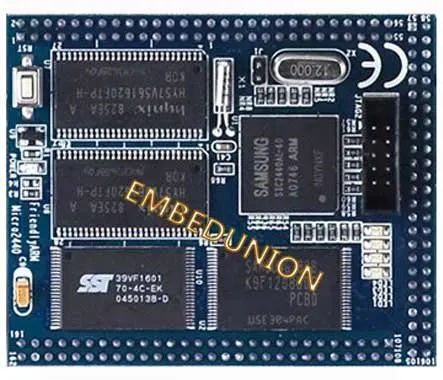

Micro2440 Stamp Module:

aeProduct.getSubject()

aeProduct.getSubject()

-Package list-

  •    Micro2440 Stamp Module  ( Preload with Linux)                 x 1
  •    CD    x 1

Remark: Preload with Linux or Wince,  if want to change/reburn Board System, Base/Mother board is nessesary.



aeProduct.getSubject()aeProduct.getSubject()

Packaging Details
  • Unit Type: piece
  • Package Weight: 0.2kg (0.44lb.)
  • Package Size: 12cm x 10cm x 6cm (4.72in x 3.94in x 2.36in)
