Item specifics
  • Demo Board Type: Others
  • Brand Name: Waveshare
  • Model Number: EX-F02x-Q100 Premium
  • Category: C8051F Development Boards
  • Examples:: Silabs IDE / Keil
  • For use with: C8051F02x devices in TQFP100 package
Product Description
A complete starter kit and development system for the C8051F02x series microcontrollers

Overview

connecting the two boards

A complete starter kit and development system for theC8051F02x series microcontrollers, such as C8051F020, C8051F022. It is designed to give designers a quick start to develop code on these devices.

This development system contains a main development board with the C8051F020 chip in TQFP100 package, and an additional expansion board with various peripheral devices.

The BUS-A & BUS-B headers located on both boards should be used to connect the two boards via 10-pin cables, which are delivered with the product. As shown in the figure right.


What\'s On Board

EX-F02x-Q100

  • Power
    • Powered from 5V DC jack using an onboard 3.3V regulator AMS1117
    • Power input/output pin headers
      • spare power input port
      • convenient for providing power supply to other board/device if necessary
  • Onboard Chips
    • C8051F020 (TQFP100), the C8051F Microcontroller
    • AMS1117-3.3, on board regulator
  • Interfaces
    • JTAG/C2 port for programming/debuging
    • BUS-A & BUS-B, for connecting to the expansion board DVK501, ease to study/develop various peripheral devices
  • Human to Machine Interface
    • Reset button, used to reset the system
    • Power indicator LED
  • Other Features
    • VDD Monitor enable/disable jumper connected to the MONEN pin
    • AD/DA voltage reference jumper
    • External crystal configurable
      • there is a jumper for selecting on board 16M crystal or custom crystal mounted via the socket
    • All the MCU pins are accessible on expansion connectors for further expansion
    • All the pins are clearly marked on the PCB. These marks provide the basic information on the pins

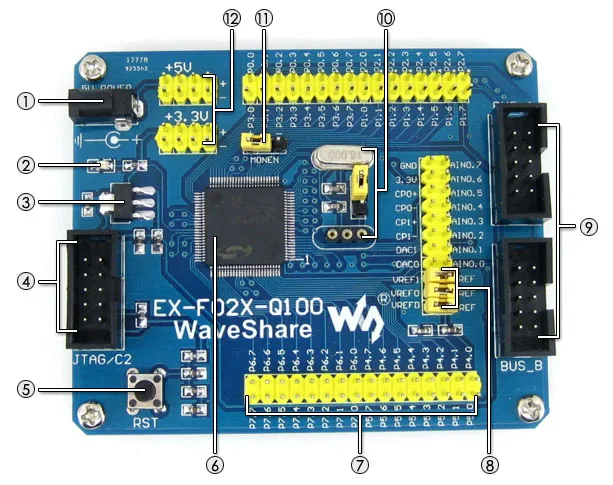

EX-F02x-Q100 introduction
  1. 5V DC jack
    • default power input
  2. Power indicator
  3. On board regulator
    • 3.3V
    • AMS1117-3.3
  4. 10-pin JTAG/C2 port
  5. Reset
  6. Microcontroller
    • C8051F020
    • TQFP100 package
  7. Pin headers connected to MCU pins
    • marked clearly on the PCB
    • easy for testing and further expansion
  1. AD/DA voltage reference
  2. BUS-A & BUS-B expansion ports
    • for connecting to DVK501
    • header pinout definition is provided
    • ease to develop various peripherals
  3. External crystal configuration
    • on board 16M crystal
    • custom crystal socket
    • selected via jumper
  4. VDD monitor enable/disable jumper
  5. Power input/output
    • 5V/3.3V
    • spare power input
    • power output is available


DVK501

Device on board Description Interface
AT24CXX 2-Wire Serial EEPROM keeps data after power down I2C
PCF8563 Real-time clock/calendar, low backup current from battery I2C
PCF8591 8-bit A/D and D/A converter, four channels AD conversion, one channel DA conversion I2C
PCF8574 Remote 8-bit I/O expander I2C
DS18B20 Programmable Resolution 1-Wire Digital Thermometer, measures temperatures from –55°C to +125°C 1-Wire
DS2401 Silicon Serial Number, a low-cost, electronic registration number that provides an absolutely unique identity 1-Wire
AT45DBXX Serial-interface sequential access Flash memory ideally suited for higher memory density requirement SPI
74HC164 8-bit serial-in, parallel-out shift register, for reducing the IO cost SART
74HC165 8-bit parallel-in, serial out shift register, for reducing the IO cost SART
MAX3232 3.0V to 5.5V, True RS-232 Transceivers, for communicating with the PC serial
MAX485 RS-485 Transceiver, for long distance communication serial
PS/2 PS/2 interface, for connecting the keyboard or mouse 2 wires
LED 8-bit status indicator LED, also can be used for displaying simple data 8 wires
Character LCD Connector Used for connecting the character LCD module, such as LCD1602 7 wires or 11 wires
Graphic LCD Connector Used for connecting the Graphic LCD module, such as LCD12864 SPI or 12 wires

Examples

Examples that come with this development system will show you how to connect the C8051F microcontroller to other peripheral components or devices and how to develope your prototype device easily. The pictures below show how the EX-F02x-Q100 works with the DVK501 and the results of the examples.

Note: The LCD12864 is not included in the price, please browse our store to buy it separately if you need one. Click on the image to enlarge.

This development board supports 3.3V LCD ONLY.

LCD1602
Displaying text on LCD
74HC164-74HC165
Serial/parallel communication example using 74HC164/74HC165
AT24Cxx
Writing and Reading data from AT24CXX EEPROM via I2C interface

AT45DBxx
Writing and Reading data from AT45DBXX DATAFLASH via SPI interface
DS18B20
Measuring temperature with DS18B20+ and displaying results on LCD
MAX3232
Sending and receiving data over UART interface using MAX3232

PCF8563
Reading date and time from PCF8563 Real Time Clock
AT45DBxx
Example of PCF8574 I/O expander
PCF8591
A/D conversion and displaying conversion results on LCD

PS2
Sending data from PS/2 keyboard
AT45DBxx
Sending and receiving data over UART interface using MAX485
DS18B20
registration number identification via 1-wire bus using DS2401

Development Resources

  • User Guide CD
    • CD with software, drivers and examples
  • Schematic Circuit Diagram
    • PDF
  • Examples in C
    • Based on Silabs IDE and Keil
  • Related Software
    • Silabs IDE
    • Keil
  • Datasheets of the chips
